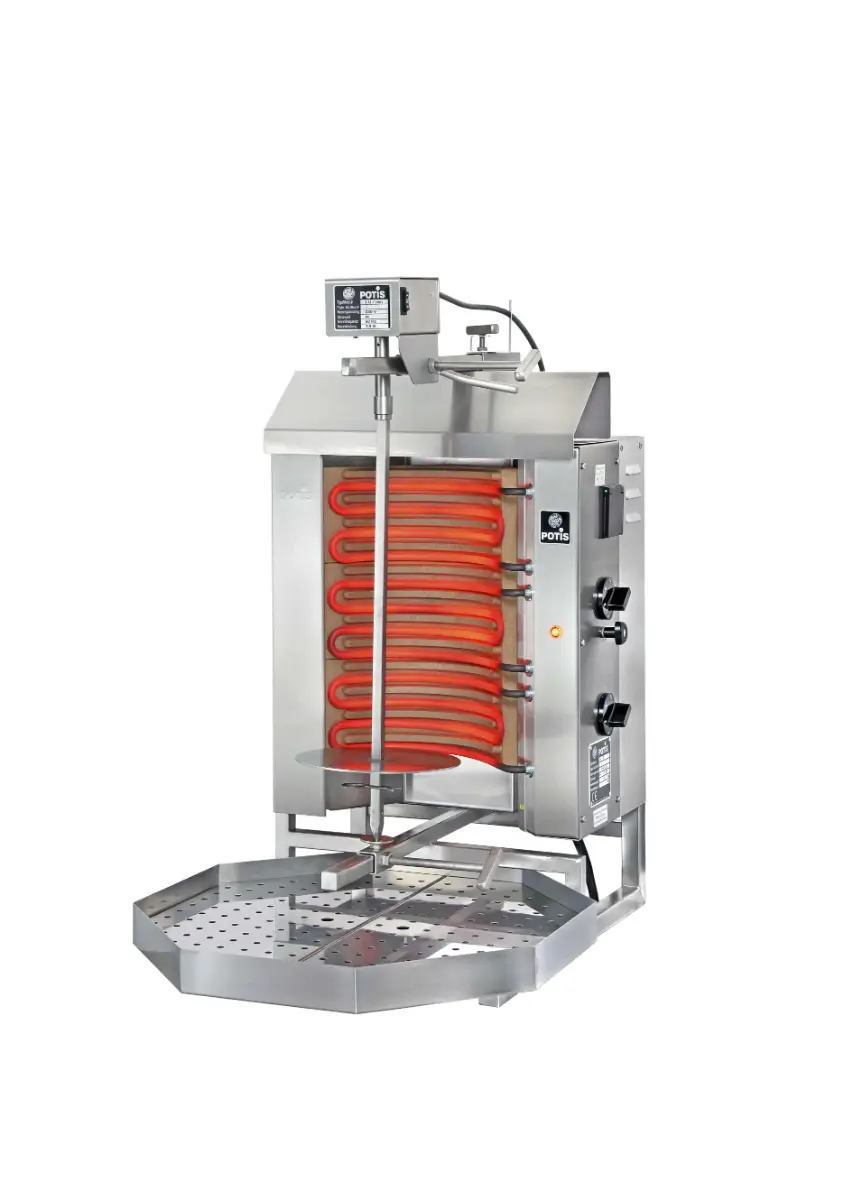

E1-S

Technical data

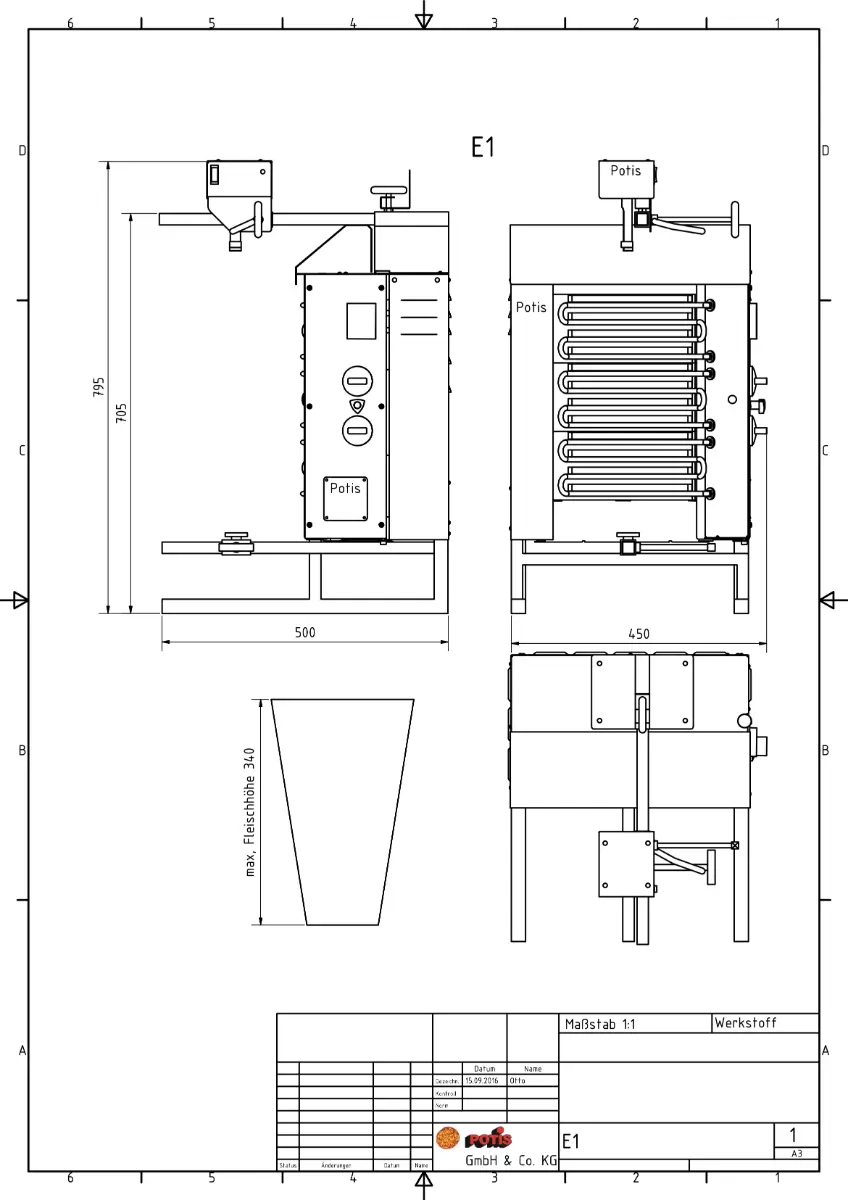

• Charging space w/o grease pan (W x D): 450 x 500 mm
• Charging space w /octagonal grease pan (W x D): 500 x 650 mm
• Operating height w/ motor: 795 mm
• UL: Yes
• NSF: Yes

Appliance connection

• Model E1: 3,9 kW/ 230 V/ 1/N/PE / ~50Hz
• Model E1-N: 3,9 kW/ 400 V/ 2/N/PE / ~50Hz
• Model E1-S: 4,5 kW/ 400/230 V/ 2/N/PE / ~50Hz

• Reflector surface: 3 ceramic bricks
• Heating element: 3 pcs
• Max. weight of meat: 15 kg
• Max. height of meat: 340 mm
