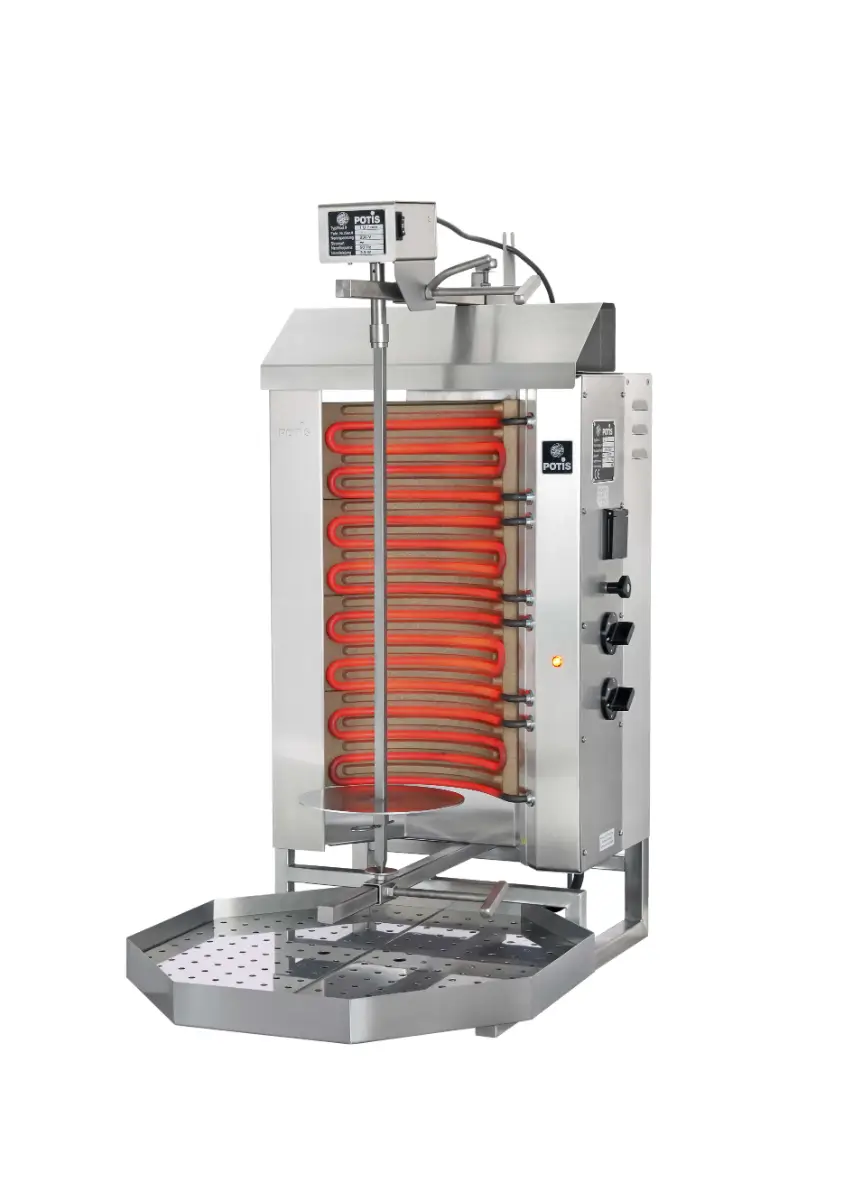

E2-S

Technical data

• Charging space w/o grease pan (W x D): 450 x 500 mm
• Charging space w/ octagonal grease pan (W x D): 500 x 650 mm
• Operating height w/ motor: 920 mm
• UL: Yes
• NSF: Yes

Appliance connection

• Model E2-N: 5,2 kW/ 400/230 V/ 2/N/PE / ~50Hz
• Model E2-S: 6,0 kW/ 400/230 V/ 2/N/PE / ~50Hz

• Reflector surface: 4 ceramic bricks
• Heating element: 4 pcs
• Max. weight of meat: 30 kg
• Max. height of meat: 460 mm
