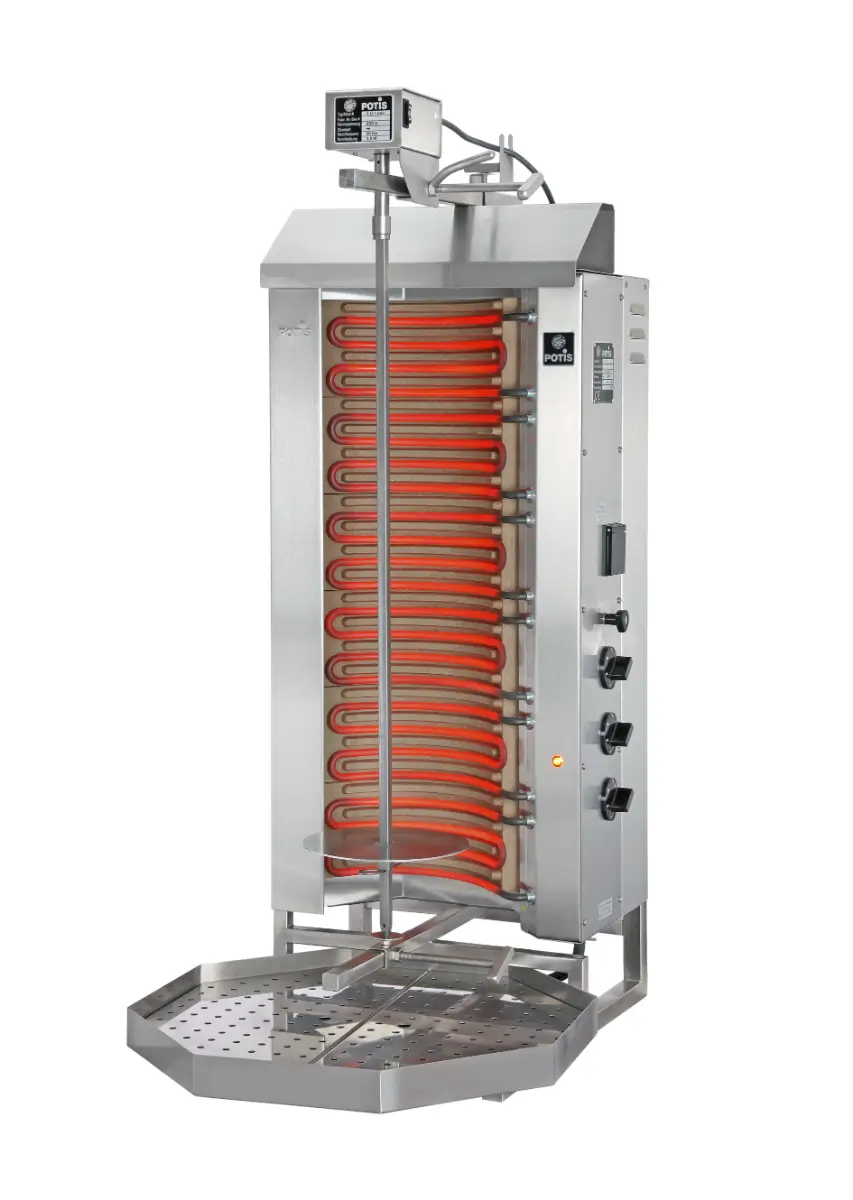

E3-S

Technical data

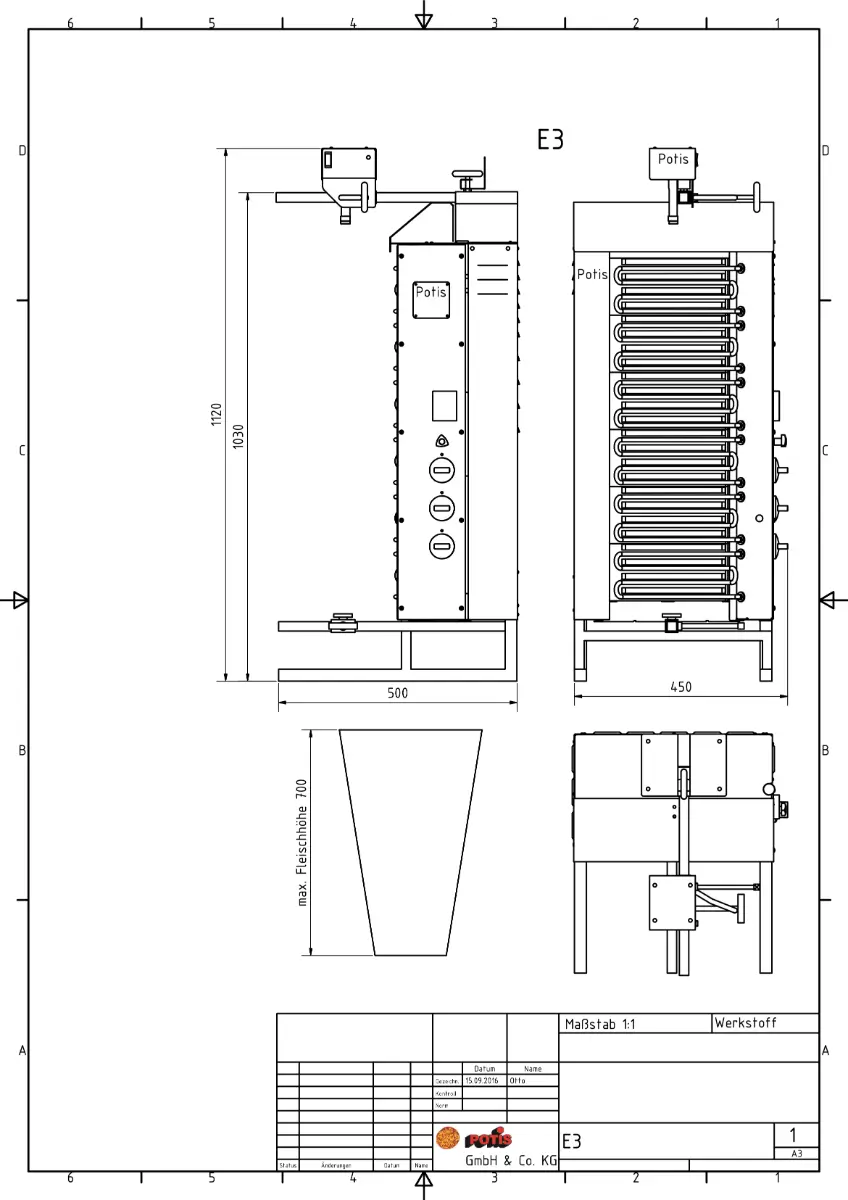

• Charging space w/o grease pan (W x D): 450 x 500 mm
• Charging space w /octagonal grease pan (W x D): 500 x 650 mm
• Operating height w/ motor: 1120 mm
• UL: Yes
• NSF: Yes

Appliance connection

• Model E3-N: 7,8 kW/ 400/230 V/ 3/N/PE / ~50Hz
• Model E3-S: 9,0 kW/ 400/230 V/ 3/N/PE / ~50Hz

• Reflector surface: 6 ceramic bricks
• Heating element: 6 pcs
• Max. weight of meat: 50 kg
• Max. height of meat: 700 mm
