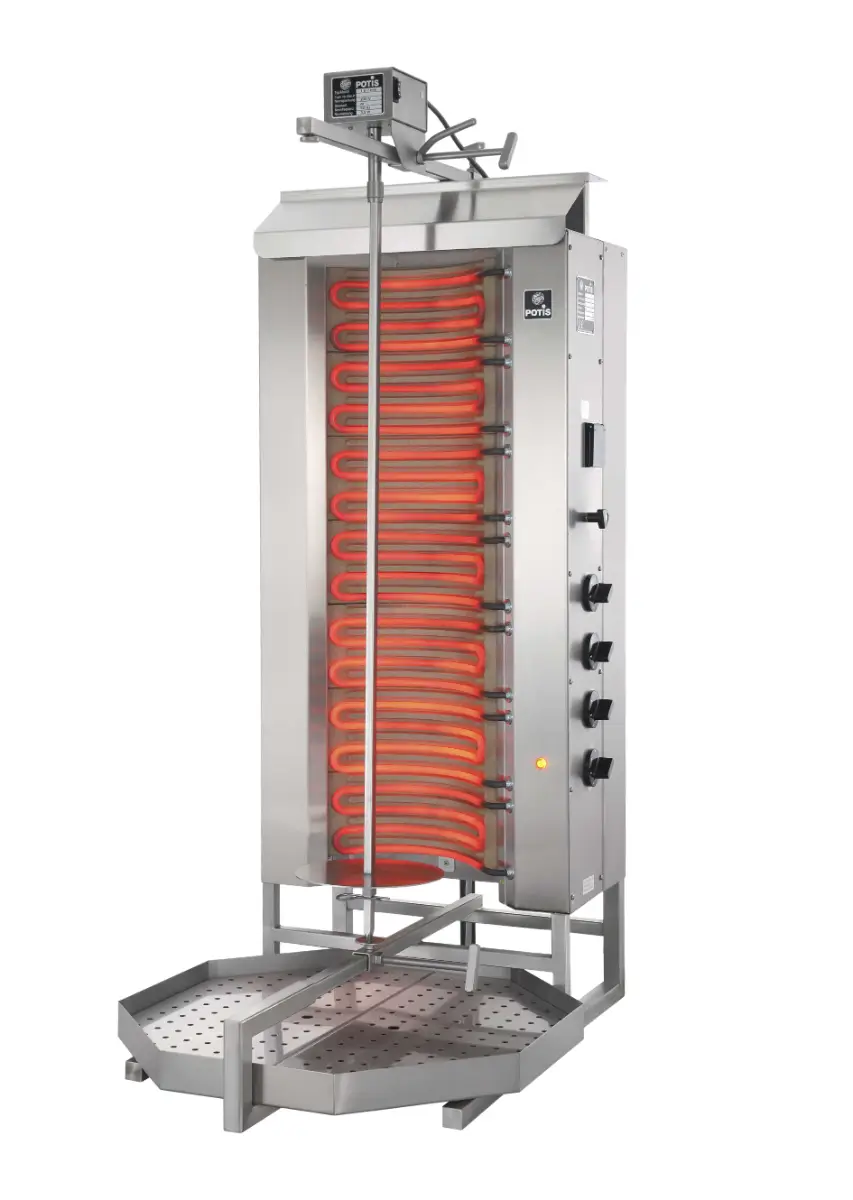

E4-S

Technical data

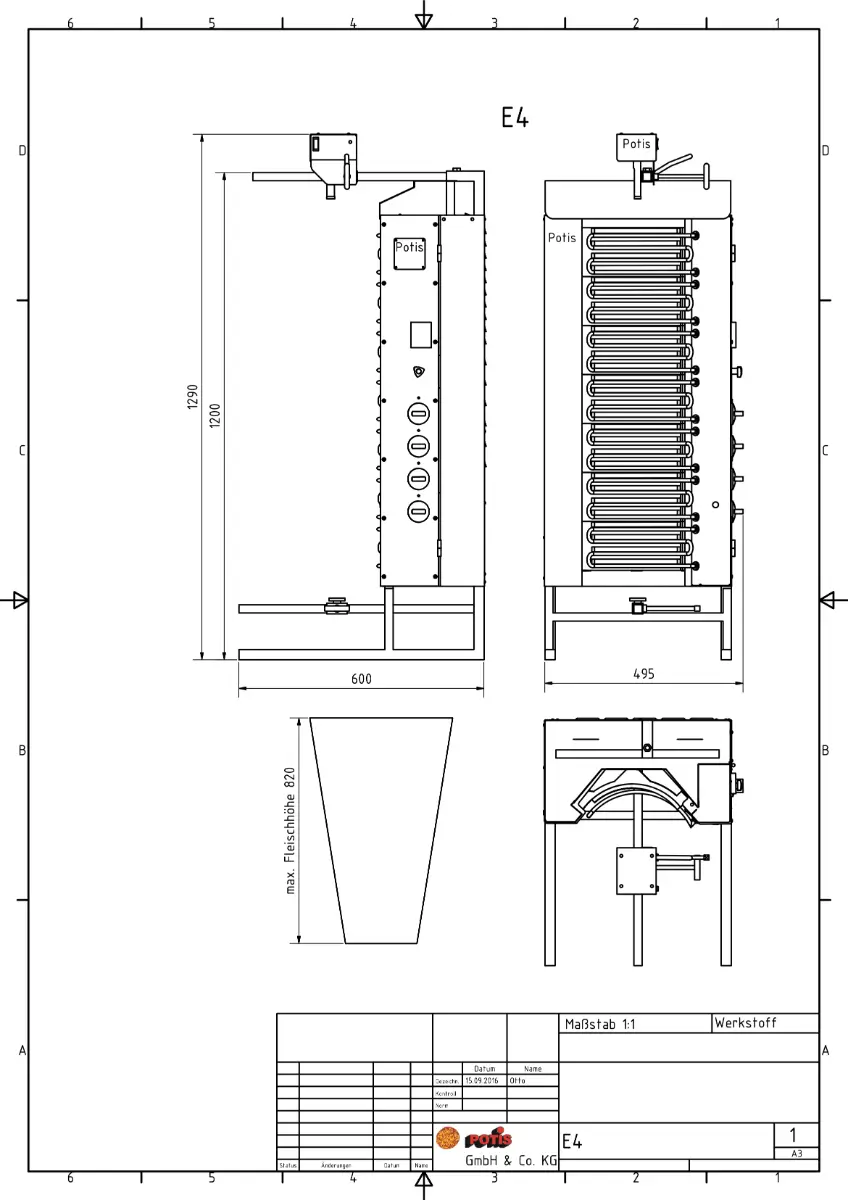

• Charging space w/o grease pan (W x D): 495 x 600 mm
• Charging space w/ octagonal grease pan (W x D): 550 x 710 mm
• Operating height w/ motor: 1290 mm
• UL: Yes
• NSF: Yes

Appliance connection

• Model E4-S: 10,5 kW/ 400/230 V/ 3/N/PE / ~50Hz
• Required feeder: 5×4 qmm
• Required fuse protection: 3x25A

• Reflector surface: 7 ceramic bricks
• Heating element: 7 pcs
• Max. weight of meat: 80 kg
• Max. height of meat: 820 mm
