F_E3-S

Technical data

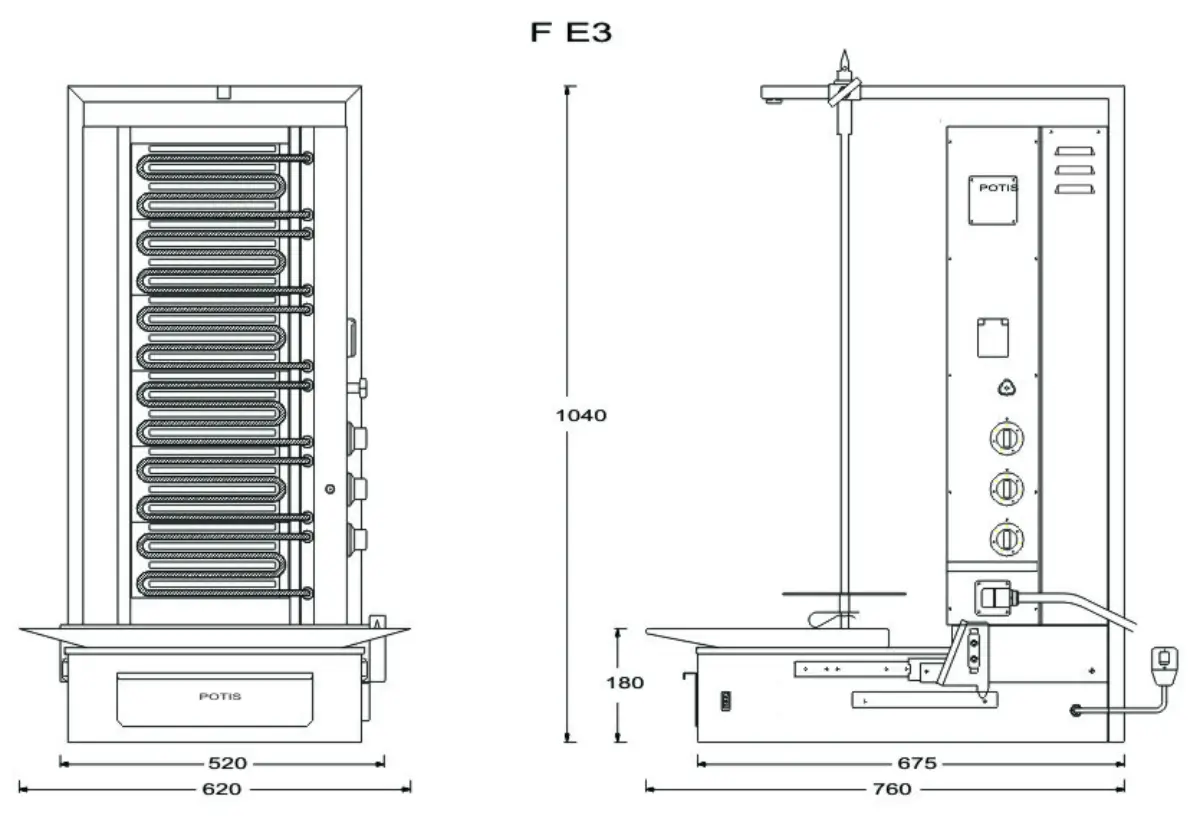

• Charging space (W x D): 620 x 760 mm
• Operating height w/ motor: 1040 mm
• UL: Yes
• NSF: No

Appliance connection

• Model F E3-N: 7,8 kW/ 400/230 V/ 3/N/PE / ~50Hz
• Model F E3-S: 9,0 kW/ 400/230 V/ 3/N/PE / ~50Hz

• Reflector surface: 6 ceramic bricks
• Heating element: 6 pcs
• Max. weight of meat: 50 kg
• Max. height of meat: 700 mm
